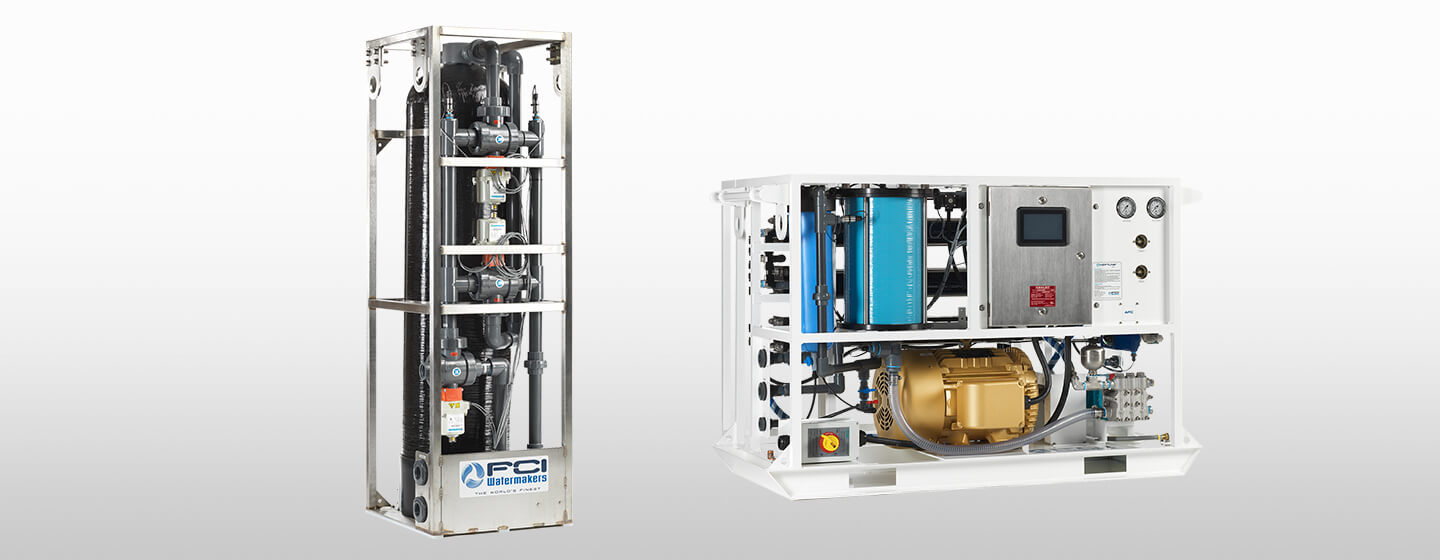

The Neptune+ OG line is our newest development in the Neptune Series of Watermakers. The rugged design addresses the demanding needs of the Oil and Gas industry, Rental Fleets, Isolated Island applications, or anywhere environmental conditions require solid engineering and troublefree operation. Building on the foundation and excellent track record of the Neptune+APC, we’ve increased filtration, added FRP cluster housings and direct drive pumps. The frame with built-in lifting eyes comes in 316 Stainless Steel or 6061 Aluminum. Our Exclusive V4 HMI/PLC Control System is fully automated and customizable through a marine certified, high-resolution Touch Screen. Enclosures are completely NMEA 4X compliant, and explosion proof ratings are also available. Couple this unit with its corresponding media filtration skid, and you’ll have the optimal system.

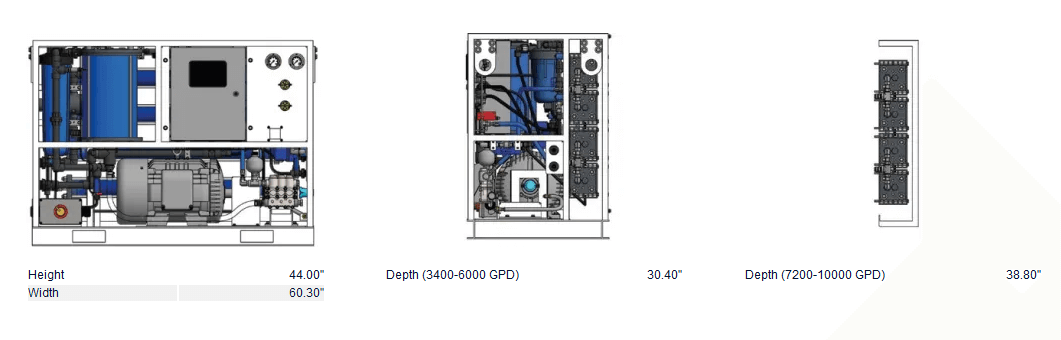

DIMENSION

Key Features

• Intuitive HMI/PLC V4 Control System
• Exclusive Marine Certified 7” Hi-res Touch Screen Display
• TEFC Direct Drive motor
• Inlet Actuated Control Valve NMEA 4X
• Fully Automated Operation and Pressure Control
• Inlet Pressure Regulator
• 120 Sq. Ft. of 5 micron pleated cartridges
• Class I Div II Stainless Steel Electrical Enclosure
• Frame: 6061 Aluminum or 316 Stainless Steel, Open Frame for easy maintenance
• Bag Filter: 25 Micron Filter with pressure differential monitoring and alarming
• Disconnect: Externally mounted for quick and easy access; OSHA approved lockout switch
• Forklift Slots: Prevents damage to frame
• Pressure Gauges & Flow Meters: Visual indicators aid troubleshooting
• Direct Drive Motor: Continuous-duty with no belts to adjust, align or replace
• APC: Automatic Pressure Control system auto-adjusts system pressure to feed water conditions
• Protection: All components safely mounted within the frame
• Unit Connections: All are outboard-mounted for simple installation
• Fresh Water Flush (optional): Schedule automated flushes through the V4 control system
• Lifting Eyes: Mounting positions for lifting or storage
• Upgradeable Capacity: Easily re-configure your system on the fly from 3,400 to 10,000GPD with added vessels
• 7” Touch Screen: HighResolution HMI, Marine Grade and Bridge Certified
• Electrical Enclosure: 316 Stainless Steel, NEMA 4X, Class I Div II Standard
• Pipe Supports: Added reinforcements to protect plumbing
• Pre-filter: 120 sq. ft. area with pressure differential monitoring and alarming
